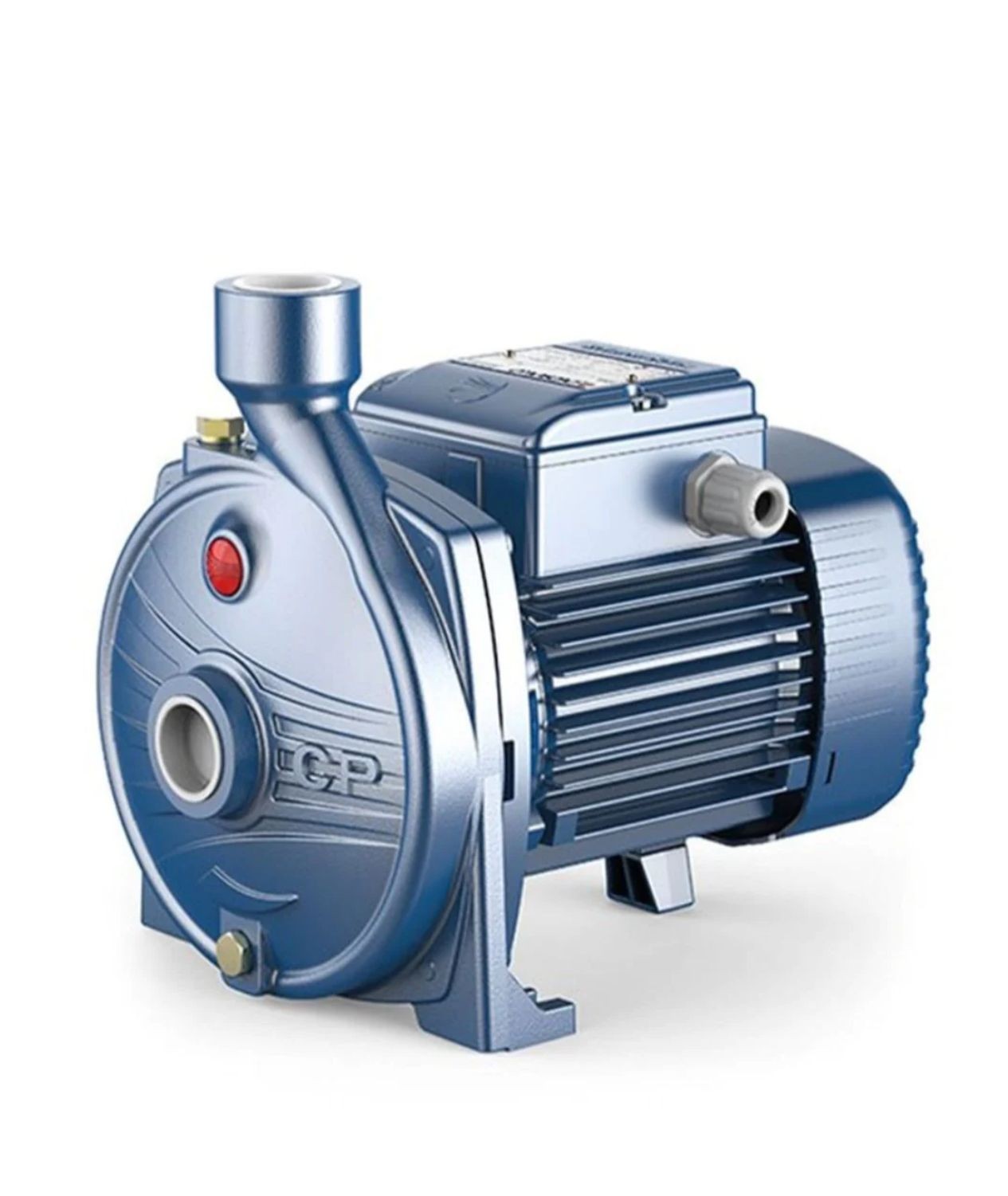

PEDROLLO CENTRIFUGAL WATER PUMP 2HP (220 VOLTS)

$80,500

Description:

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment or at least sheltered from inclement weather.

Features:

Power: 2hp / 1.5kW
Engine Type: Mono-phase
Rated Voltage: 220V
Inlet: 1 1/4"
Outlet: 1"
Liquid type: Clean Water
Uses: Domestic, Civil
Applications: Water supply systems, Air conditioning systems, Pressure systems, Cooling systems, Irrigation pumps, Liquids transfer
Typology: Surface
Family: Centrifugal
Pump Body: Cast Iron
Body Backplate: Stainless Steel AISI 304
Impeller: Stainless Steel AISI 304
Dimension (L x W x H): 24.2cm x 36.4cm x 29.0cm
Weight: 21.5kg


Performance Range:

Flow rate up to 160 l/min (9,6 m³/h)
Head up to 56 m
Application Limit:

Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature to +40 °C
Manometric suction lift up to 7 m
Continuous service S1
Max. working pressure:
   – 6 bar for CP 100-130-132-150-158
   – 10 bar for CP 170-190-200
