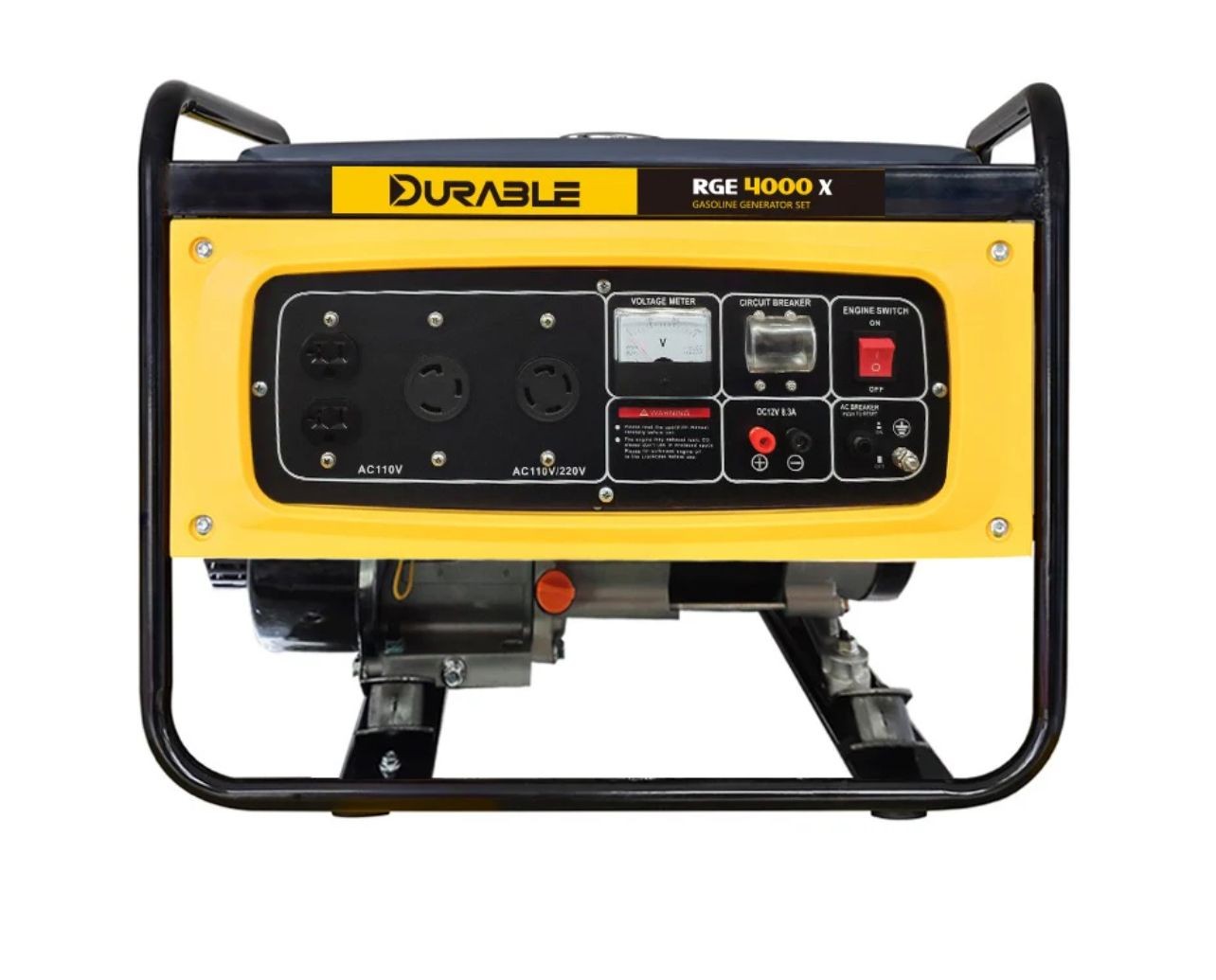

3KVA GAS GENERATOR

All operation functions of the generator set are on the control panel, with a meter showing output voltage. Breakers can protect generator set from damages caused by overload.

Easy portable

An open frame configuration means it's easy to handle and store when not in use.
Integrated to enable simple and safe loading and transportation.
FEATURES:

Generator  Set

Rated frequency: 50Hz
Rated power: 3kva
Max. power: 3.3kva
Rated voltage: 110v / 220v
Rated current: 26/13 A
Rated rotation speed : 3000 r/min
Generator

Pole No.: 2
Phase number: Single phase
Excitation mode: Self-excitation and constant voltage (with AVR)
Power factor: 1.0 COS
Engine

Engine type: RG280G
Structure type: Single-cylinder, 4-stroke,air-cooled, cylinder inclined, overhead valve
Bore x stroke: 7.8cm × 5.8cm
Displacement: 0.277L
Compression ratio: 8.5 : 1mm
Rated power: 5kw
Lubrication system: TCI
Lube oil brand: Above SF or SAE 10W-30, 15W-40
Lube capacity: 0.6L
Starting system: Recoil starter
Fuel consumption ratio: 374 g/kW.h
Fuel type: Vehicle lead-free petrol
Genset

Panel type: General panel
Output: 2-Single phase Receptacle
Output: Without connection pole
Nosie level (7m): 69 dB(A)
Fuel tank capacity: 25L
Overall dimensions: 67cm ×52cm × 54cm
Net weight: 71kg
