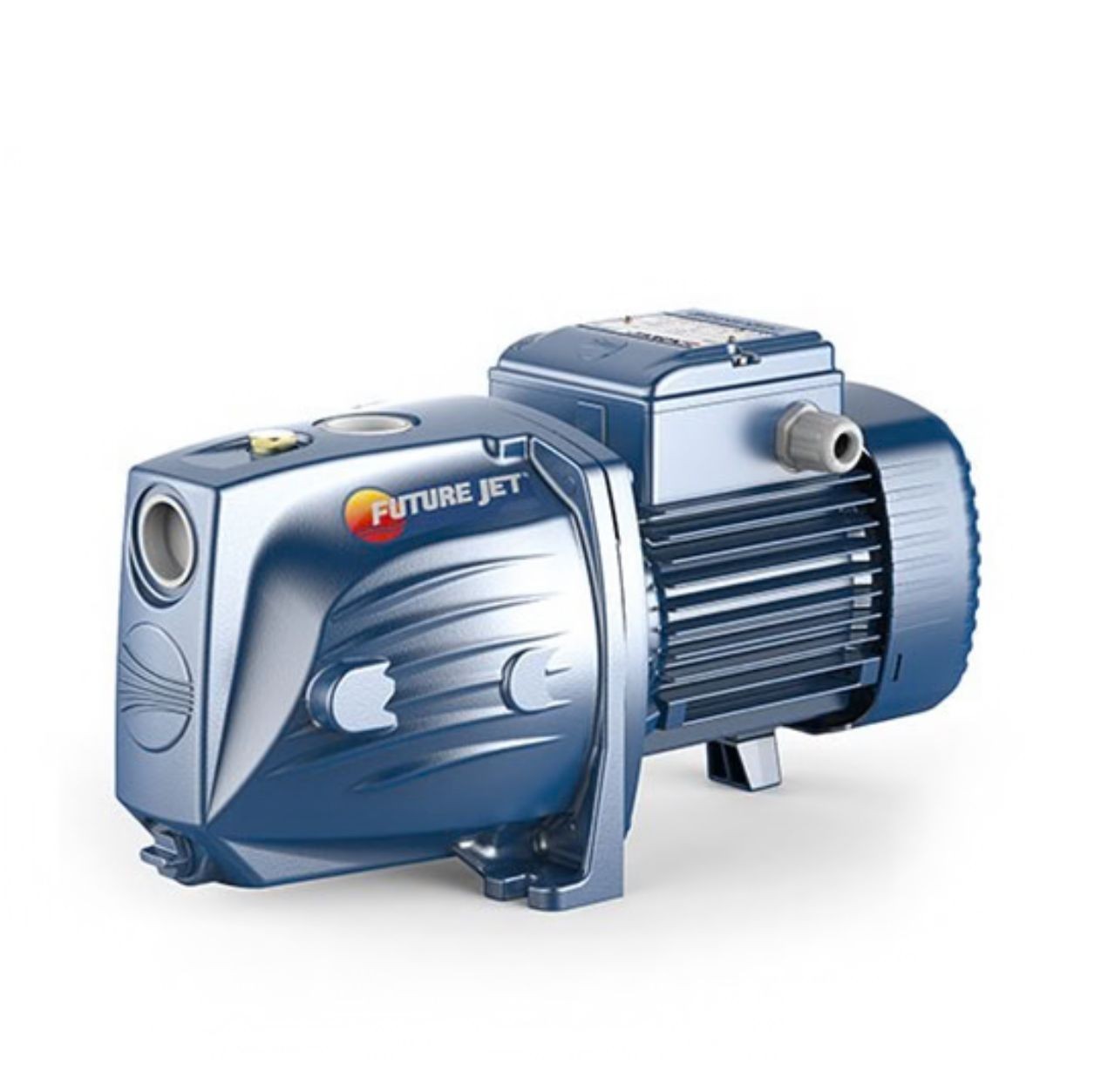

Pedrollo FUTURE JET Self-Priming Water Pump 1HP

$35,700

Description:

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The self-priming FUTURE JET pumps are designed to pump water even in cases where air is present. Because of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure tanks, and for the irrigation of gardens and orchards, etc.
Installation needs to be undertaken in well ventilated closed areas or anyway protected from bad weather.

Features:

Power: 1HP / 0.75kW  |  50Hz
Voltage: 220v
Engine Type: Mono-Phase
Pump Body: Cast iron with an Epoxy Electro Coating treatment, with threaded ports in compliance with ISO 228/1 (for FUTURE JET 1)
Nozzle Assembly: Noryl
Motor Shaft: Stainless Steel AISI 431
Impeller: Stainless Steel AISI 304
Inlet: 1"
Outlet: 1"
Liquid type: Clean Water
Uses: Domestic, Civil
Applications: irrigation pumps, washing systems, water supply systems, liquids transfer, fire-fighting sets, pressure systems
Typology: Surface
Family: Self-Priming
Dimension (L x W x H): 18cm x 38.9cm x 20cm
Weight: 13.4kg


Performance Range:

Flow rate up to 120 l/min (7,2 m³/h)
Head up to 58 m


Application Limit:

Temperature of the liquid from -10 °C to 40 °C
Ambient Temperature +40 °C
Manometric suction lift up to 9 m (HS)
Max. working pressure 6 bar
Continuous service S1
