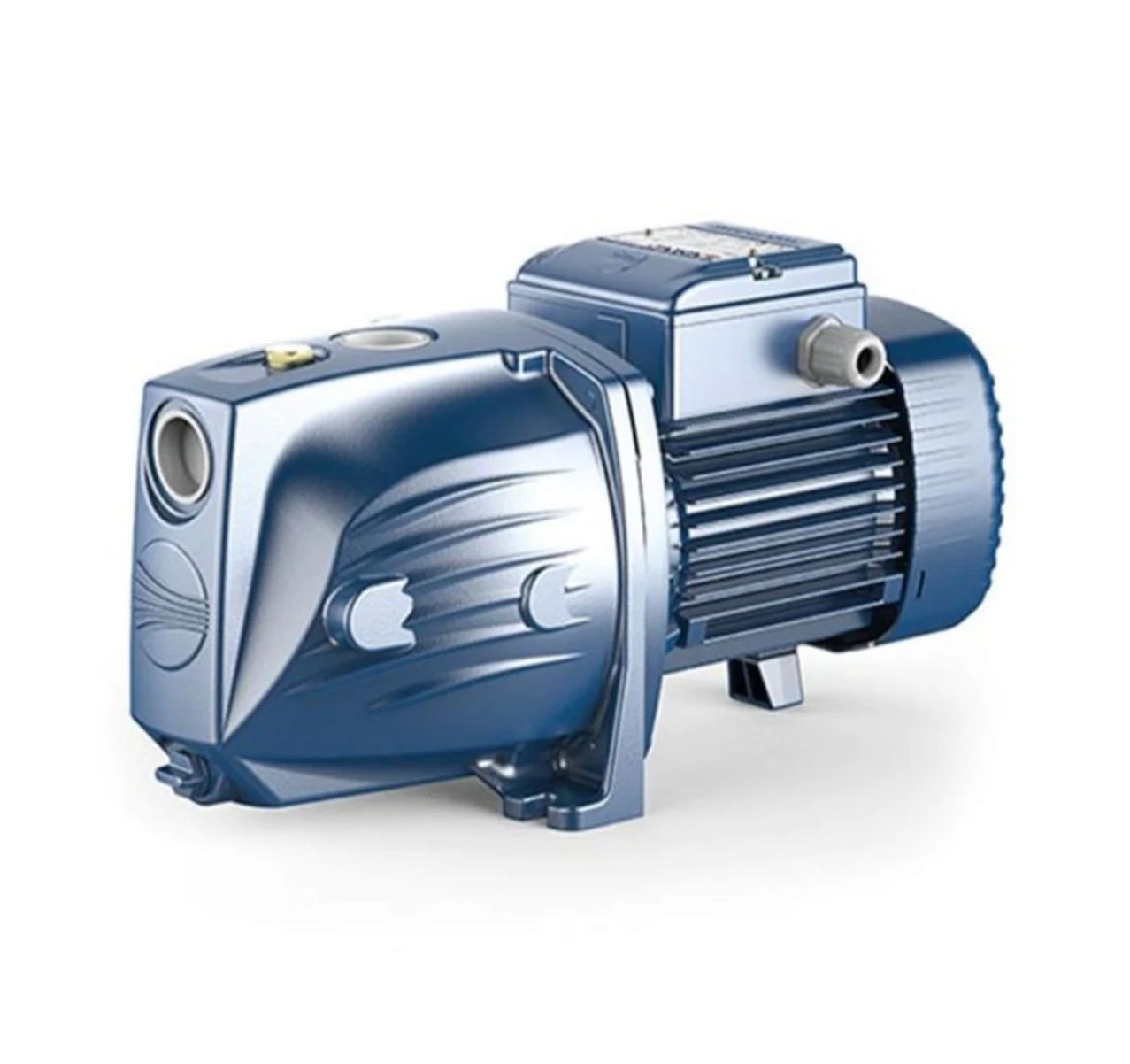

Pedrollo Self-Priming Jet Water Pump 1HP

$32,200

Description:

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The self-priming JSW pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in
combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

Features:

Power: 1HP / 0.75kW  |  50Hz
Engine Type: Single-Phase
Pump Body: Cast Iron, complete with threaded ports in compliance with ISO 228/1
Nozzle Assembly: Noryl FE1520PW
Motor Shaft: Stainless Steel AISI 431
Impeller: Stainless Steel AISI 304
Inlet: 1"
Outlet: 1"
Liquid type: Clean Water
Uses: Domestic, Civil
Applications: Water supply systems, Fire-fighting sets, Washing systems, Pressure systems, Irrigation pumps, Liquids transfer
Typology: Surface
Family: Self-Priming
Dimension (L x W x H): 18cm x 38.9cm x 20cm
Weight: 13.1kg
Available in 110v and 220v


Performance Range:

Flow rate up to 85 l/min (5,1 m³/h)
Head up to 70 m


Application Limit:

Temperature of the liquid to +40 °C
Ambient Temperature da -10 °C to +40 °C
Manometric suction lift up to 9 m (HS)
Max. working pressure 6.5 bar
Continuous service S1
