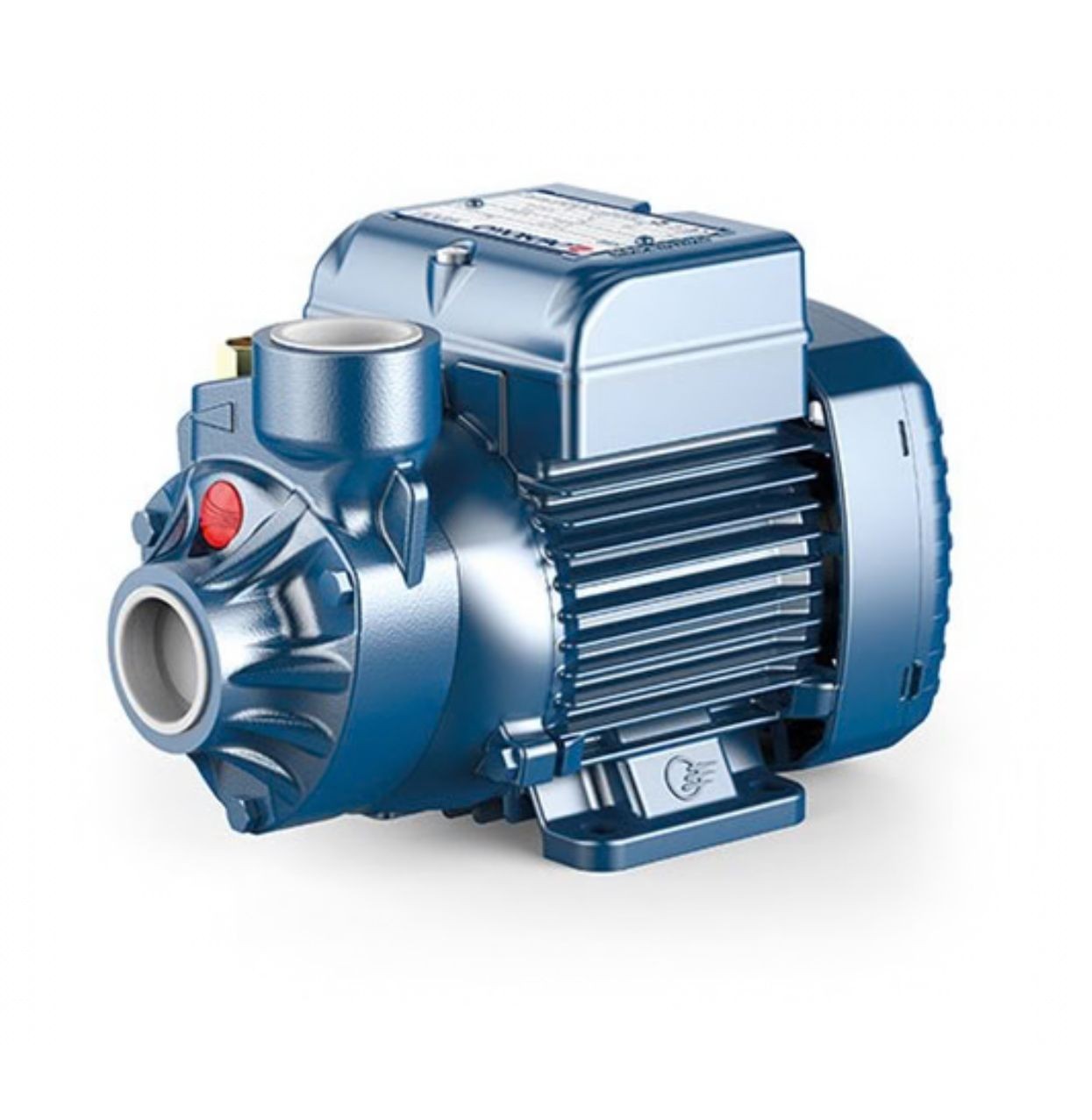

Pedrollo Water Pump 0.75HP

$28,800

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Thanks to their reliability, the fact that they are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features:

Power: 0.75HP / 0.55kW  |  50Hz
Rated Voltage: 110v
Engine Type: Mono-phase
Pump Body: Cast Iron, with threaded ports in compliance with ISO 228/1
Motor Shaft: Stainless Steel AISI 431
Impeller: Brass with  peripheral radial vanes
Inlet: 1"
Outlet: 1"
Liquid type: Clean Water
Uses: Domestic
Applications: Water supply systems, pressure systems, irrigation pumps
Typology: Surface
Family: Peripheral
Dimension (L x W x H): 12cm x 23.7cm x 15.3cm
Weight: 7.0kg


Performance Range:

Flow rate up to 90 l/min (5,4 m³/h)
Head up to 100 m


Application Limit:

Temperature of the liquid from -10 °C to +60 °C
Ambient temperature up to +40 °C (+50 °C for PK 60)
Manometric suction lift up to 8 m
Max. working pressure:
   – 6 bar for PK 60, PK 60-MD, PK 65
   – 7 bar for PK 70, PK 80
   – 10 bar for PK 90, PK 100, PK 200, PK 300
Continuous service S1
