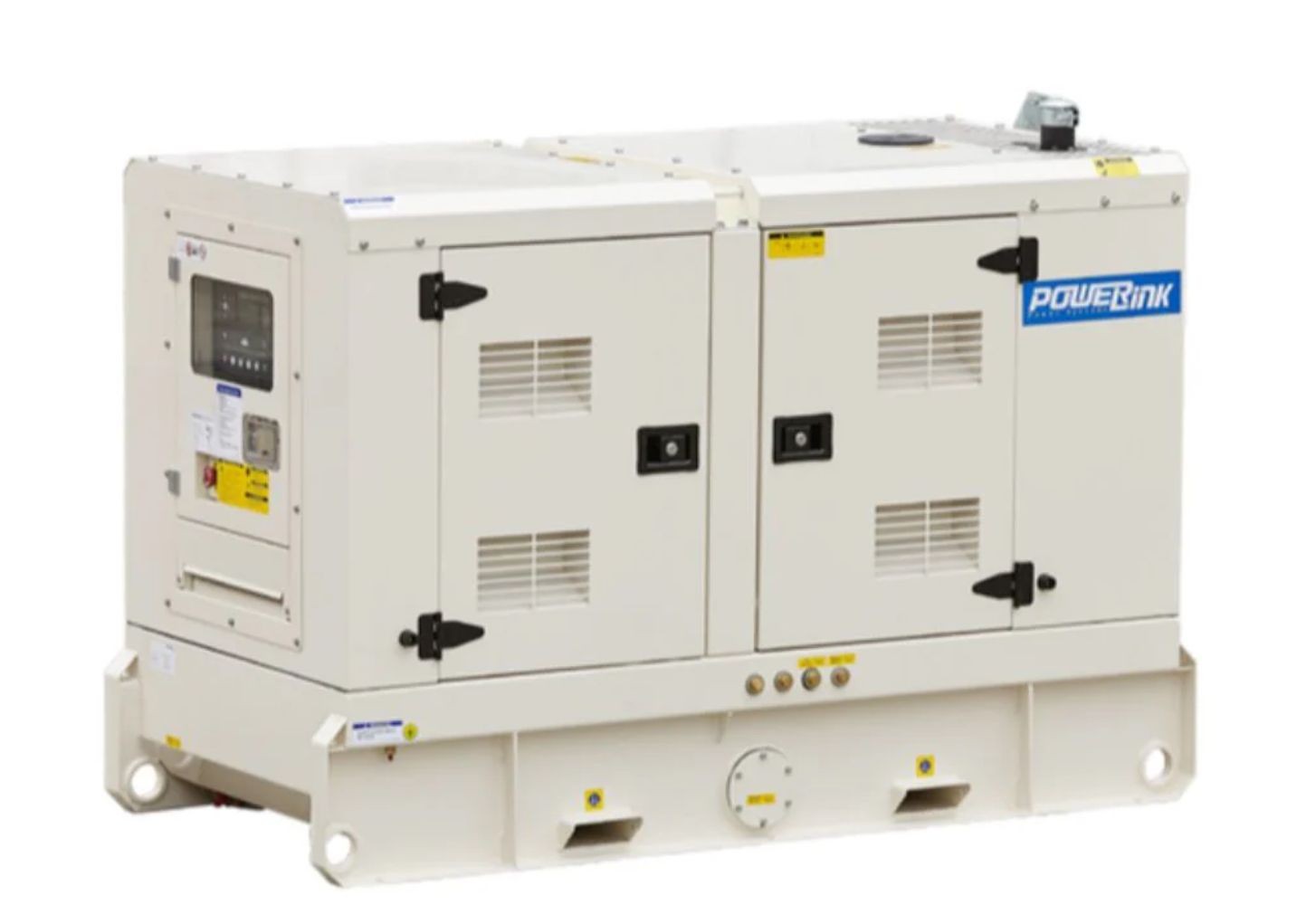

Powerlink Diesel Generator 13KVA 1-Phase

$1,850,000

Description:

Perkins engine 403D-15G
Close coupled to a Leroy Somer alternator LSA40S4
Microprocessor control module PLC-920
SCHNEIDER main circuit breaker: 63A
Rotate speed governor: Mechanical governor
Excitation System: Self-excited, SHUNT
A.V.R. Model: R220
Key Switch
Emergency stop switch
ATS (Automatic Transfer Switch) receptacle
1 x 12V/72AH sealed for life maintenance free battery
Lockable battery isolator switch
Powder coated canopy
50 degrees celsius radiator
Oil Pump on the engine
Steel base frame with forkslots
Vibration isolators between the engine/alternator and base frame
Dry type air filter
Base fuel tank for 27 hours running
Drain points for fuel tank
Operational Manual / Specifications


Features:

Model: PP13S

50Hz @ 1500 RPM
1-Phase, 3-wire
110V / 220V 57A
Structure Type: RS
Tank Capacity: 100L
Dry Weight: 729kg
Dimensions (L x W x H): 193.2cm x 83cm x 130.8cm
Standby Power: 13.5kVa/10.8kW
Prime Power: 13kVA/10kW
