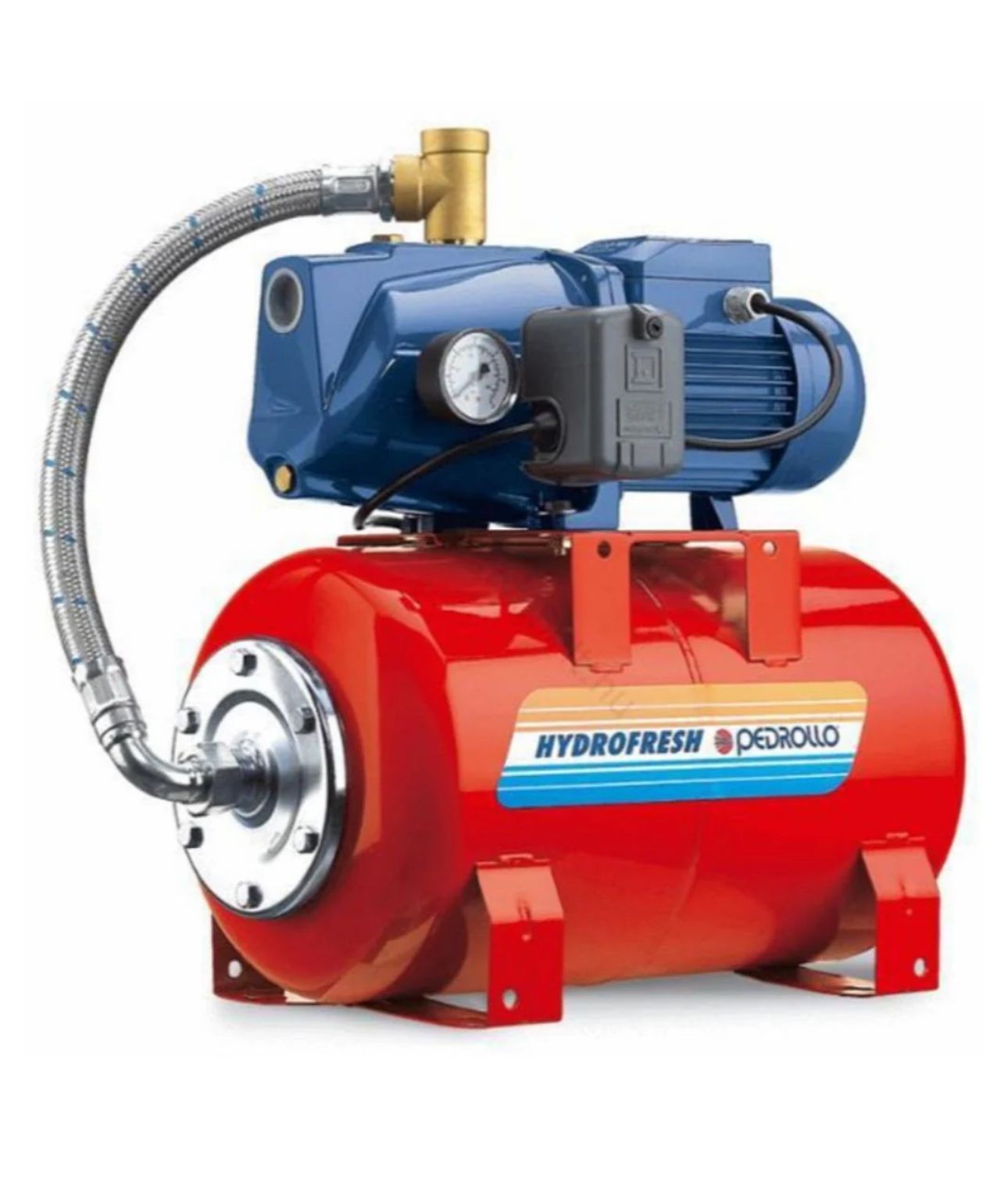

Pedrollo Hydrofresh Water Pump System 1HP

$56.400

Description:

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming JSW pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in
combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

Features

Power: 1HP / 0.75kW
Engine Type: Single-Phase
Pump Body: Cast Iron
Impeller: Stainless Steel AISI 304
Inlet: 1"
Outlet: 1"
Liquid type: Clean Water
Uses: Domestic, Civil
Applications: Water supply systems, Fire-fighting sets, Washing systems, Pressure systems, Irrigation pumps, Liquids transfer
Typology: Surface
Family: Self-Priming
Weight: 20.9kg
Dimension (L x W x H): 25.5cm x 53.5cm x 53cm
Available in 110v and 220v


Performance Range:

Flow rate up to 85 l/min (5,1 m³/h)
Head up to 70 m


Application Limit:

Temperature of the liquid to +40 °C
Ambient Temperature da -10 °C to +40 °C
Manometric suction lift up to 9 m (HS)
Max. working pressure 6.5 bar
Continuous service S1


Components:

Single-Phase 1HP Water Pump
24L Pressure Tank
Pressure Switch PSG-1
Pressure Gauge
Metal Hose
Brass Connector
1.5m Power Cable with Schuko Plug
